High Refresh Outdoor LED Rental Signage P3.91
Features of display LED screen rental P3.91:
1. Seamless splicing, could be adjusted, more easy to maintain.
2. Low noise, low consumption, ensure the long lifespan.
3. Die-casting aluminum panel of great dissipation could save your electricity cost substantially.
4. High quality LED chip,wide viewing angle,good flatness,anti-static,high brightness, low attenuation,good stability.
5. Adopts 500x500mm cabinet size,fast installation,vivid image display with wide viewing angle. Varieties of display mode, easy to operate.
6. Standard cabinet design,to make the same cabinet size can apply to different pixel display.Therefore,it's more convenient to install and dismantle for the whole screen. Lightweight cabinet design, save transportation cost.
| Full Color P3.91 LED Display |
| Main | Model | CK-P3.91-16S |
| Module | Pixel pitch(mm) | 3.91 |
| LED Lamp Model | SMD2525 |
| Module Size (mm) (W*H) | 250*250 |
| Module Resolution (W*H) | 64*64 |
| Driving Mode | Constant drive |
| Scan Mode | 1/16 |
| Pixel configuration (R,G,B) | 1,1,1 |
| Color temperature (K) : | 3200-9300 |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| Cabinet | Standard Cabinet Size(mm) (W*H*T) | 500*500*85 |
| Cabinet Resolution (W*H) | 128*128 |
| Cabinet Module Number | 4PCS |
| IP Grade | IP65 |
| Cabinet Weigh(kg) | 10.5 |
| Cabinet Material | Die Casting Aluminum |
| Display | Best Viewing Distance(m) | 3.91-50 |

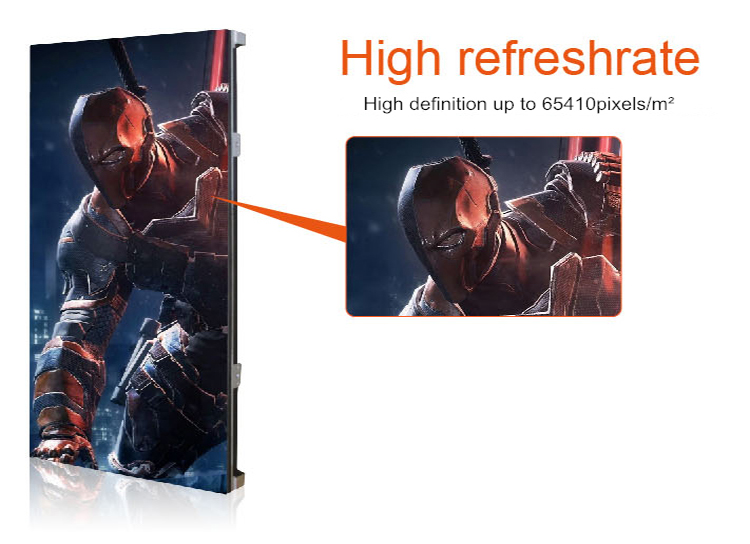

| Pixel Density (dot/m2) | 65410 |
| Brightness (cd/m2) | ≥6500 |
| Power Max Consumption (W/m2) | ≤2000 |
| Power Average Consumption (W/m2) | 1000 |
| View angle | H:140; V:140 |
| system Specification | Control host (CPU) : | Pentium4 or above |
| Operating system: | WIN98/2000/NT/XP |

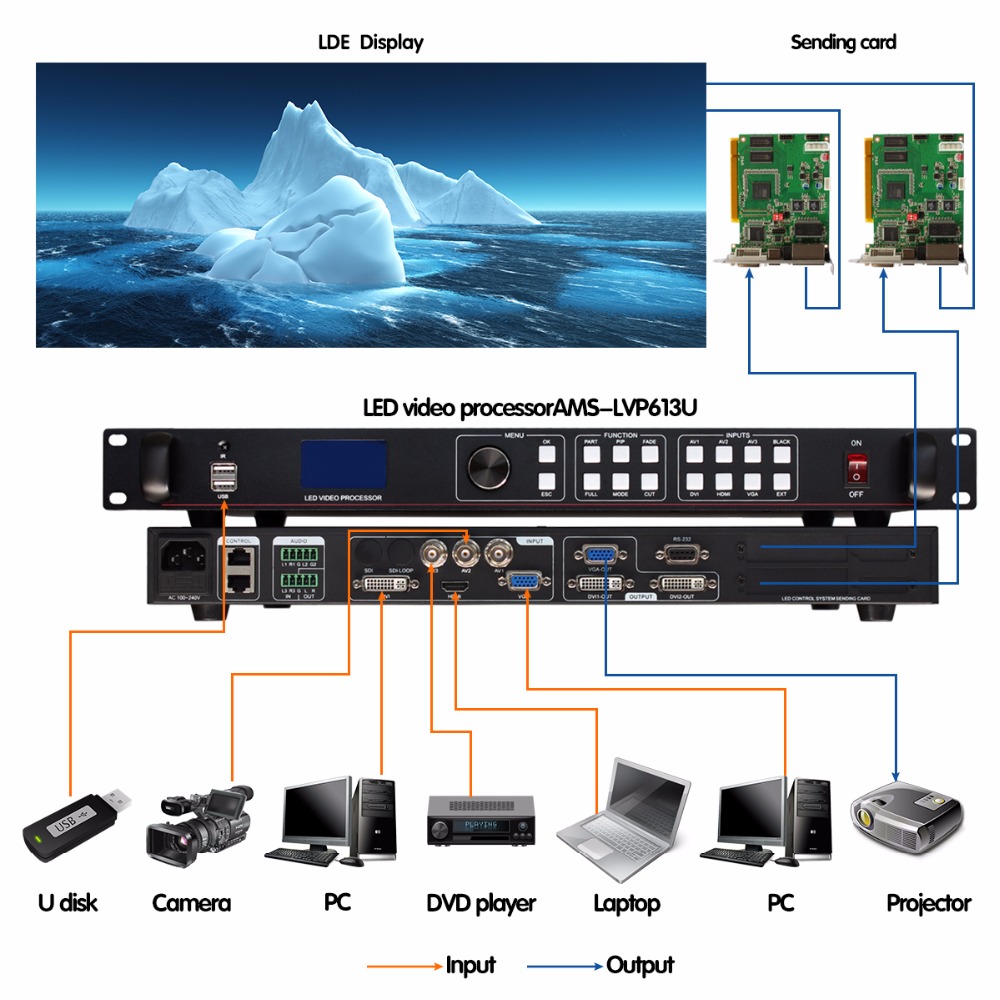

| Control method | Synchronous display with control PC by DVI |
| Control System | Linsn, Nova-star, Colorlight or as you required |
| Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| Interface definition | HUB75 |
| Frame Frequency | ≥60Hz |
| Refresh frequency | ≥1920HZ |
| Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable |
| Operation Parameter | Working Voltage | AC220±10% 50Hz/AC110±10% 60Hz |
| storage Temperature | 35℃～+85℃ |
| Working Temperature | -20℃～+60℃ |
| Humidity | 10%-95% |
| Life Span Time | ≥100000 hours |
| MTBF | ≥5,000hours |
| Screen Plainness | ＜±1mm |
| Blind Spot Rate | ＜0.0001 |
| | Certificate | CE, RoHS, FCC |

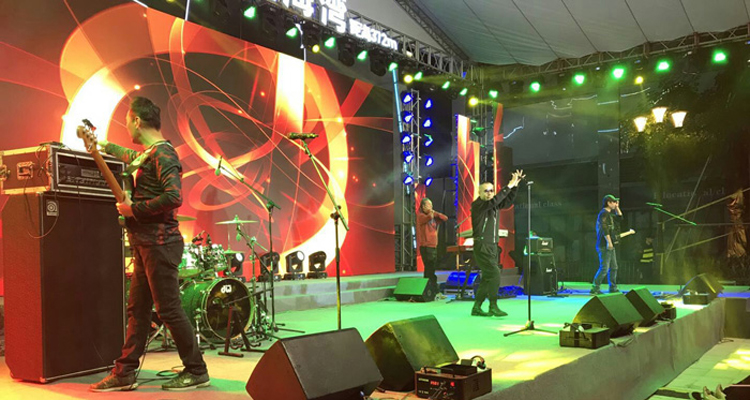

| | Application | Outdoor, Indoor Rental Purpose |
